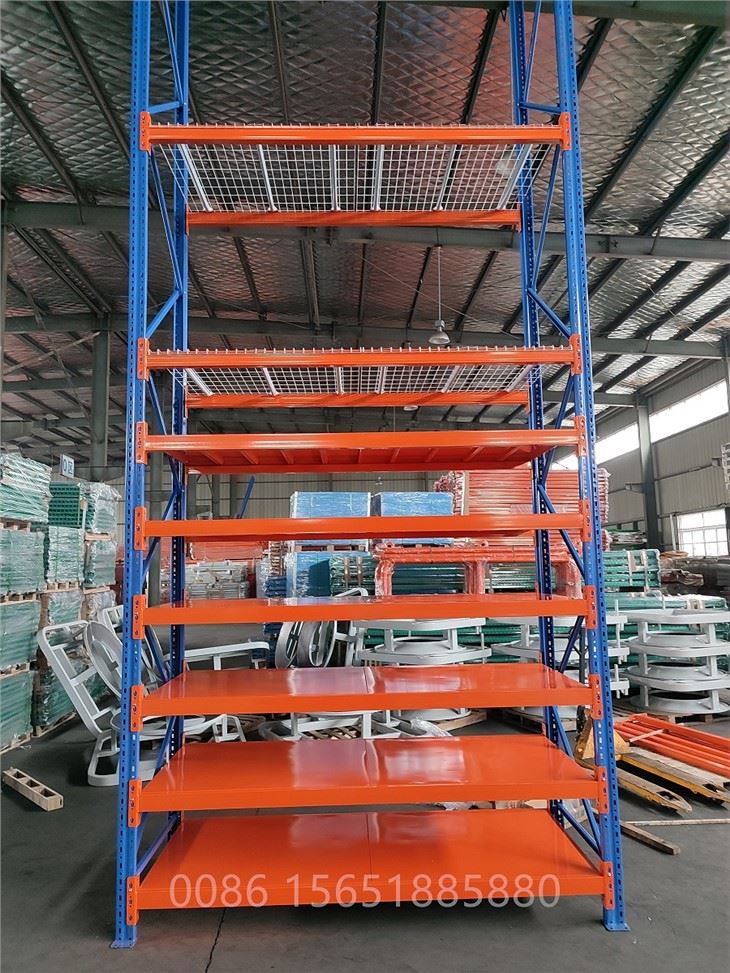

हेवी ड्यूटी वायर शेल्विंग
हैवी ड्यूटी शेल्विंग रैक विशेष रूप से 1000 किग्रा - 3000 किग्रा / यूडीएल (समान रूप से वितरण भार) के बीच कठिन भार के लिए निर्मित और डिज़ाइन किए गए हैं, जहां यह भारी क्षमता वाले वेयरहाउस उपयोगकर्ताओं के लिए सबसे उपयुक्त प्रणाली है।
जांच भेजें
विवरण
Heavy Duty Steel Storage Shelf Wire Mesh Decking
Wire mesh deck is commonly used as a safety measure on selective pallet rack to prevent pallets or the products stored on them from falling through the rack structure. It is wildly used in warehouse, as an acompany of rack. The outside finish of wire mesh can be powder coated, galvanized, and also spray paint.
Wire mesh decking was made of round steel of dia.4mm, dia.5mm or dia.6mm. Matched with reinforcements to enhance the loading capacity. Reinforcements are the main place to take loads. According to the goods size and shape, the mesh can be made at 100mmx50mm, 100mmx25mm, 50mmx50mm and 50mmx25mm. The most used one is 100mm x 50mm. The width of wire mesh decking generally vary from 800mm to 1350mm. The depth is decided by the racking frame's depth. If use the strongest materials, each decking can load as much as 1500kg.
For a quotation, you only need to tell us your racking frame's depth, beam's length and each level's loading क्षमता। इन आंकड़ों से, हम आपको एक त्वरित उद्धरण दे सकते हैं।
